Product Profile
Medium powder for metal workpiece and automobile hub has excellent boiling resistance, chemical resistance, etc. And it meets the export requirement and can also be designed in accordance with the demands of customers and cured at a low temperature.
Application Fields
Automobile hub and parts, automobile headlight, home appliances, lighting equipment, furniture, barbecue grill, mudguard, and other fields.
Product Highlights
After the medium powder has been cured, vacuum metalizing will take at a gun of physical vapor deposition. A thin metal coating is formed and deposited so that the surface effect of imitation chromium—plated is achieved.
Meanwhile, no pollution discharges, and the emissions don't contain toxic waste and hexavalent chromium.
Features
It has excellent mechanical performance, leveling property, storability, and chemical resistance. It is non—hazardous and does not irritate skin. It meets the requirements of environmental protection of the European market,and it is energy saving and environmental protection type of the real quality of a product.
Basic Performance
Density: (ASTM D792)1.2-1.8[g/cm³] Depending on the color
Particle Size: General average particle size 25—30 μm, according to different applications.
Storage: In an environment below 30 DEG C, dry indoor storage for 12 months.
The Theory of Spraying Area: 9.0—13.8m² (100% utilization rate, with the film thickness of 60 mu m calculation, and the proportion of related.)
Test Results:
| TEST ITEM | TEST METHOD | REQUIREMENTS RESULTS |
| Cross cut test for adhesion 1mm | ISO 2409 | Grade 0 |
Moist and heat resistance test (240h) | ISO 6270-1 | Grade 1 |
Salt spray test (Neutral salt spray) (240h) | ISO 9227 | Good:color and lustre are unchanged or slightly changed, coating and substrate are not corrosive. |

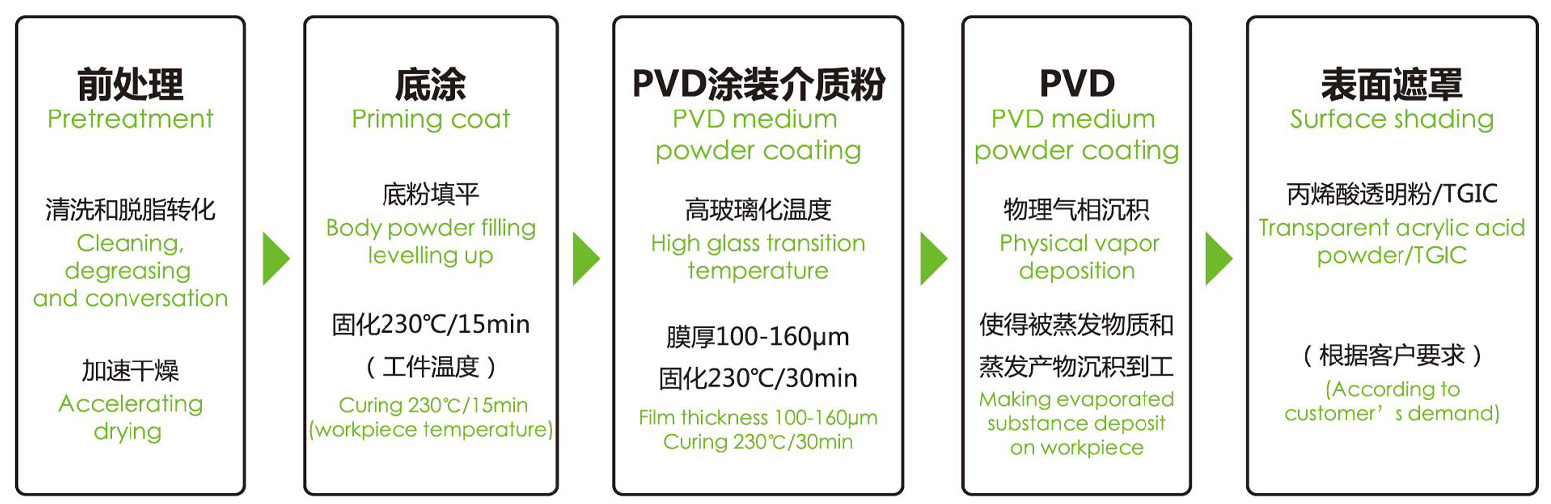

Process flow
